Betalight

Cabin lights

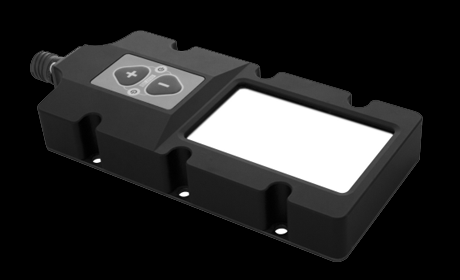

DC Combi Light

We provide a range of low-profle LED lighting systems in order to satisfy a variety of requirements such as reliable, robust and high performance lighting systems. The DC Combi is ideal for existing and new built vehicles. It’s design is unique, white light output and a integrated blackout mode in the desired colour.

The low profile design increases the available headroom in areas with limited space. LED technology makes this a suitable solution, total costs are reduced by a longer lifespan. 5x (usually 50,000 hours) including replacement, maintenance, disposal and labor costs.

The need for surplus space to store replacement and used lamps has been eliminated, while the absence of mercury meets the environmental problem and offers a non-hazardous solution.

The DC Combi lamp was originally designed for military vehicles and is also suitable for military field shelters, temporary workspace lighting and marine / marine area lighting.

Three series available


FEATURESBENEFITS

• Low profile LED light - 16mm
• Dual mode - main and blackout lighting
• White light with red, green or blue blackout mode
• Lightweight - 300g
• 50,000 hours mean time between failure
• Available with or without dimming control
• Sealed low energy light source

• Excellent resistance to shock and vibration
• High reliability and durability
• No requirement to replace tubes or bulbs
• Through-life cost savings over fluorescent and incandescent
• 1/3 of the power requirement for equivalent incandescent lights

TYPICAL APPLICATIONSPHYSICAL CHARACTERISTICS - SERIE 1

• Vehicles
• Aircrafts
• Ships
• Shelters and tents
• Area Lighting

• 165 X 73 X 16 MM
• Colour light: White
• Output Lumen: 1100
• Input volts: 13-32
• Weight: 300 gram
• Blackout mode: red, green, blue

SERIE 2 - ADDTIONAL FEATURESPHYSICAL CHARACTERISTICS - SERIE 2

• Dimmable in both normal and blackout modes
• user selectable blackout mode using programming mode
• Door and ignition switch inputs to control light output
• Shelters and tents
• Area Lighting

• 165 X 82.6 X 21 MM
• Colour light: White
• Output Lumen: 500
• Input volts: 13-32
• Weight: 350 gram
• Blackout mode: red, green, blue




SERIE 3 - ADDTIONAL FEATURESPHYSICAL CHARACTERISTICS - SERIE 3

• Dimmable in both normal and blackout mode
• Brightness storage retention when switching between modes
• Blackout mode when the light is off
• Forced mode where the light provides a pre-determined level of white light
• Warm and cool white versions available
• Fitted with MIL-38999 connector
• Tactical mode where the light provides a low level of red, green, blue or NVIS white light

• 199 X 73 X 27 MM
• Colour light: White
• Output Lumen: 1100
• Input volts: 18-32
• Weight: 460 gram
• tactical mode red
