Betalight

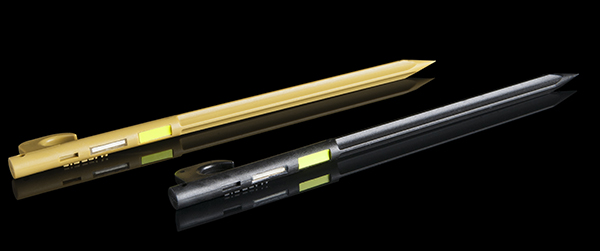

Self-Luminous Beta Marker

KEY FEATURES

  • Absolute reliability in all environmental conditions
  • Operational life of 10 years
  • No maintenance, batteries, bulbs or switches
  • Lightweight and robust
  • Will not affect night vision
  • Yellow panel enables use in darkness & dusk
  • Colour options for function differentiation
  • Single lamp unit, NSN 6260-99-797-8456
  • Double lamp unit, NSN 6260-99-775-8649
  • Low energy source at 1.0 GBq

    PERFORMANCE

    The standard beta marker incorporates green light to
    a brightness of 150 µL and is visible to the naked eye in
    starlight conditions at range of more than 10 metres.
    Brightness is not affected by temperature, humidity,
    altitude or operational plane.



TYPICAL APPLICATIONS



  • IED marker
  • Path and trench identification
  • Mine marking
  • Position marking
  • Map pointer
  • Tent peg
  • Arc of fire marking

    PHYSICAL CHARACTERISTICS

    Material                           : Tough, reinforced ABS
    Overall length                : 200 mm
    Maximum diameter      : 9 mm
    Maximum weight          : 10 g
    Viewing angle                 : 90° (1600 mrads)
