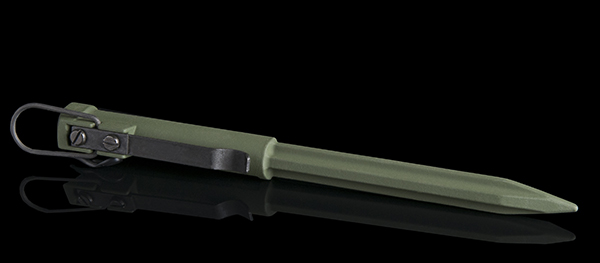

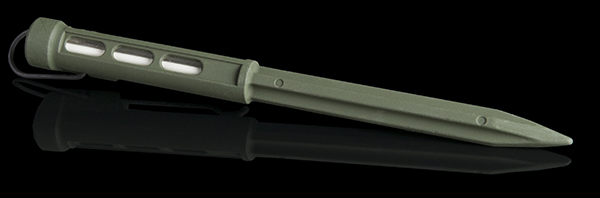

The Self-Luminous Peg light is an efficient and durable
ground-fixed demarcation system.

KEY FEATURES

• Absolute reliability in all environmental conditions
• Rugged construction enables penetration of hard ground
• Secure viewing angle of 90° (1600 mrads)
• Betalight luminance maintains night vision
• No batteries, bulbs or maintenance required
• Lightweight, portable, easy to deploy
• Extensive operational life
• Colour options available
• NATO Stock Number 5820-99-650-8640

PERFORMANCE

The standard Peg light incorporates green light to a brightness of
500 µL and is visible to the naked eye in starlight conditions
at range of more than 35 metres. Brightness is not affected
by temperature, humidity, altitude or operational plane.
Available in orange bodycolour for indication of danger.

TYPICAL APPLICATIONS

• Minefield marking, for vehicle and personnel patrol lanes
• UXO (unexploded ordnance) marker in combination with a flashcard
• Marking weapons positions, deployed during daylight to enable
  rapid re-occupation at night
• Arc of fire definition, where two peg lights are positioned
  forwards to provide a clearly visible arc of fire
• Route marking for tactical replenishment of AFVs



  FIXING

  Peglights can be rapidly driven into earth, soft wood or tarmac.
  Spring and attachment clips are incorporated to enable easyd
  attachement to a wide range of support structures.



  MATERIALS

  The Peglight body is cast in aluminium alloy and finished in Military green. The spring and attachment clip is sprung steel with black phosphate finish.



  PHYSICAL CHARACTERISTICS

  Overall length : 200 mm
  Cruciform diameter : 12 mm
  Maximum depth : 25 mm (incl. clip)
  Weight : 72 g
  Viewing angle : 90º

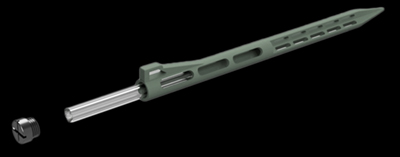

Peg Light 2.0

Material

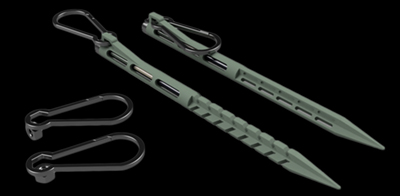

The Peg Light 2.0 body is made of titanium and can be rapidly driven into earth, soft wood or tarmac. A carbine hook equipped with an m8 spanner is attached to enable easy xing to a wide range of support structures.

KEY FEATURES

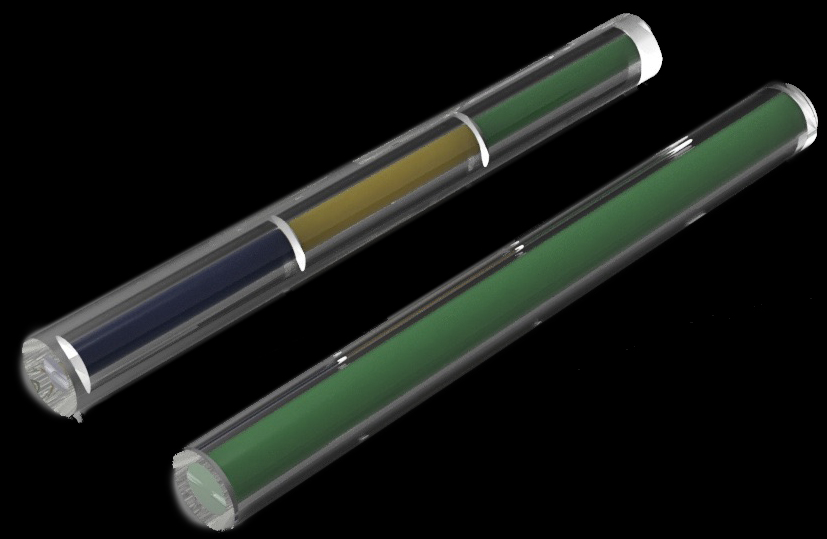

The advantage is the 3 different lights that can be fit in for navigation. West: green-red-green and East: red-green-red

PHYSICAL CHARACTERISTICS

Overall length: 205 mm
Cruciform diameter: 12 mm
Weight : 36 g
Viewing angle : 180º
