Betalight

Soldier’s Personal Illuminator

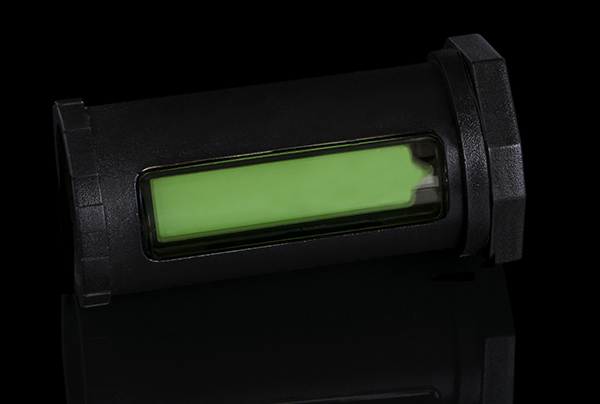

The self-powered Soldier’s Personal Illuminator (SPI) is a
lightweight, compact multi-purpose light source capable of
deployment as torch, map-reader, personnel marker, route
marker, and aiming post.

KEY FEATURES

• Absolute reliability in all environmental conditions
• Rotating outer sleeve enables control of light output ensuring
  maximum security against detection

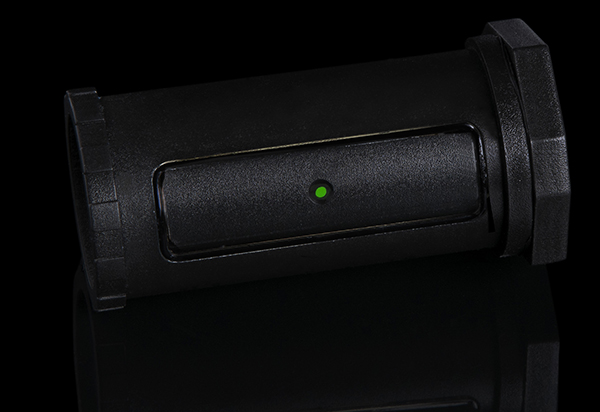

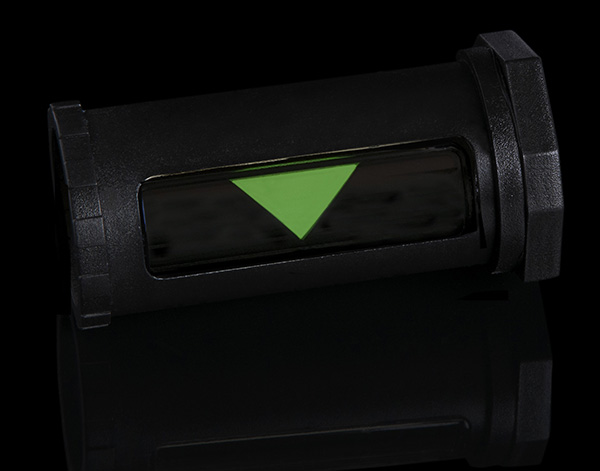

• Adjustable to four defined illuminated profiles
• Betalight luminance maintains night vision
• Maintenance-free, no batteries or bulbs required
• Lightweight, compact and rugged design
• NATO stock number 6260-99-781-4147



  PERFORMANCE

  The SPI utilizes green light to a nominal brightness
  of 750 µL. Rotating outer sleeve controls brightness
  and illuminated profile. Brightness is not affected by
  temperature, humidity, altitude or operational plane.



  TYPICAL APPLICATIONS

• Infantry night aid: for reading target record charts,
  fuse or sight graduations
• Night navigation aid: to enable map and
  compass readings
• Aiming point light or arc of fire markers
• Directional route marker





  FIXING

  The SPI is fitted with a clip attachment and neck cord.

  OPTIONAL

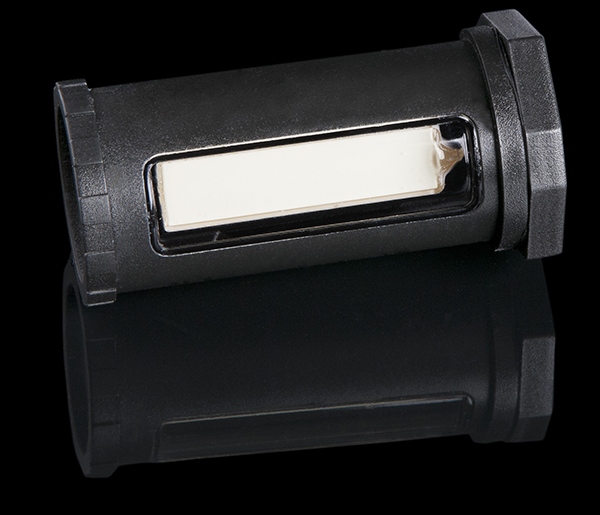

  SPI’s can also be supplied with white light.

  MATERIALS

  The SPI is constructed of robust, matt black finished
  acrylic plastic.

  PHYSICAL CHARACTERISTICS

  Length        : 67 mm
  Diameter   : 30 mm
  Weight       : 40 g
